Compressor Controller:
Industry
Diesel Engine & Compressor
Technology
Embedded Electronics
Services Offered
Product Design & Development, Prototype, Manufacturing
Summary

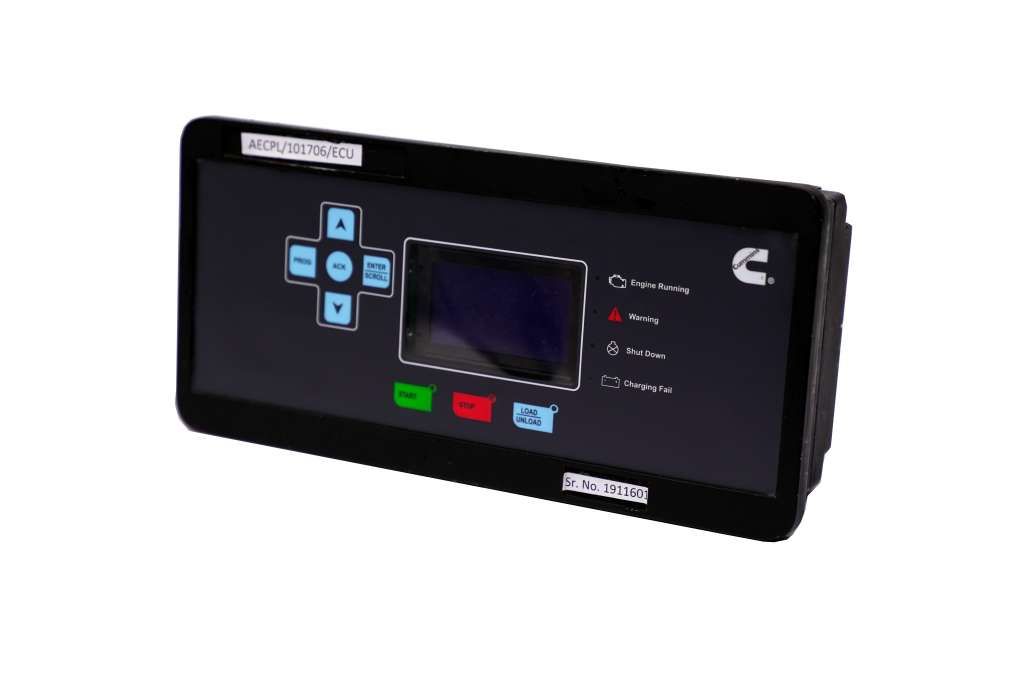

Arya Electronics is an Engine + air compressor Control Module suitable for Portable Units A sophisticated module monitoring an extensive number of engine and Compressor parameters, Arya Electronics will annunciation warnings, shutdown and status information on the LCD screen, LED Indication. The module has an RS485 port to communicate with the PC.
Arya Electronics is well-suited with electronic (CAN) and non-electronic engines and suggests the whole of flexible ideas, products, and wide device protections so the system can be simply reformed to meet various applications. The modules can be easily configured using the front panel HMI.
Key Features:
- Power Supply 9-36V DC
- Manual Engine start and stop
- Remote Start/Stop Function
- 128×64 graphics LCD Display with keypad
- Solid-state fuel stop & crank output signals max for 1A
- Solid-state digital outputs for Grid Heater and Compressor Load Valve for max 150mA
- Integral Starter Protection
- Safety Protection against various faults
- Communication Port – RS485 & CAN
- IP 66 plastic enclosure
- Error + Event log
- 4-20mA Inputs – 5 Nos.
- Voltage Measurement
- Dedicated Load/Unload Button
- Front Panel Mounting
- Protected Front Panel Programming
- Configurable Alarms & Timers.
- Configurable start and stop timers
- 5 key menu navigation
- Fuel Usage Monitor and alarm
- Charge alternator Failure indication.
- Protections disable function
- Reverse Power Protection
- Operating Temperature 0-70 Deg
- IP66 Enclosure
- Service Main alarms and history.
