IIoT Solutions

IIoT Solutions Overview:

Arya is one of the best IIoT service providers who has developed IIoT solution that allows you to use the data platform to track any machinery and diagnose the problem much more easily. These can Predict machine failure before it happens – Real-time data and online monitoring allows you to analyse what’s happening.

IoT Hardware comprises an extensive series of devices such as devices for directing, connections, beams etc. These IoT hardware devices manage important responsibilities and tasks such as system initiation, safety, action specifications, communication, and exposure of support-specific objectives and activities.

The Arya Electronics Smart 12 IoT solutions are designed and manufactured by Arya Electronics , the leading manufacturers of IIoT solutions.  Smart 12 IoT Device is a versatile device which reads the MODBUS memory map of any RS-485 MODBUS protocol device and sends the data to the cloud server. The stored data can be observed as per client necessity on dashboard. RMU (Remote monitoring Deice) is an ideal solution for online monitoring of RS-485 MODBUS data. RMU mainly consist of GSM module and micro controller-based control circuit. RMU supports generic MODBUS RTU protocol for data acquisition communicate with IT application database on cloud. The Device can be easily configured within one minute to send your data on Server.

Arya Electronics Industrial IoT Gateway also called smart Iot gateway has a wide range of end to end solutions. These solutions simplify IoT platform for consumers as they comprise superior hardware and/or software composed with Pre-configured IoT connectivity facilities verified, delivered and maintained by Arya Electronics.

IoT End to End Solution
  • Remote monitoring & Control
  • Agriculture pumps and other application
  • Digital building & building management system
  • Smart grid & smart metering
  • Automotive

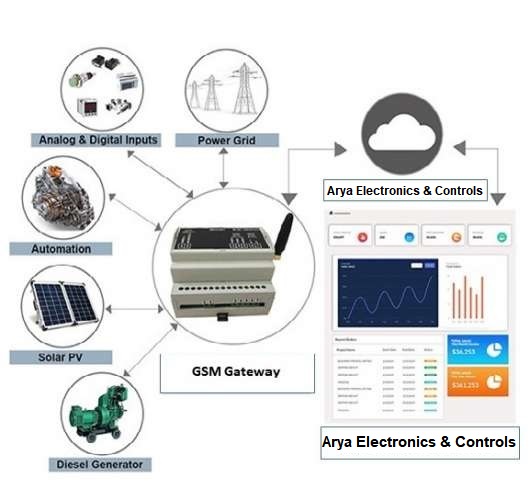

Image-1.1--530x500

A. RS485 To GSM Gateway

(Remote Monitoring Unit)

Remote Monitoring Unit & Web-based Software
  • Communication Options to suit Worldwide Locations
  • Solar Pump monitoring
  • Web-based Software for Internet
Read Case Study

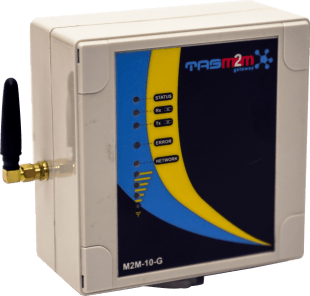

Remote Monitoring Unit

B. IIoT SMART12

Smart Remote Data Acquisition Devices Now Available With Wi-Fi

Arya Electronics new data acquisition solution brings greater versatility for the Industrial Internet of Things (IIoT).

The new SMART 12 feature Wi-Fi connectivity, which will serve the growing number of devices and M2M Gateway with M2M Gateway solution providers with applications that require wireless communication.

Arya Electronics now offers a range of flexible data acquisition solutions for wired Ethernet, Wi-Fi, 2G GPRS and 3G networks.

We want to create it as easy as possible for manufacturing operators to assemble and share sensor data in diverse situations and conditions.

SMART 12 IoT products is a versatile device which reads the MODBUS memory map of any RS-485 MODBUS protocol device and sends the data to the cloud server. The data stored can be viewed as per customer requirement on dashboards.

SMART 12 mainly consist of GSM module and micro controller-based control circuit. SMART 12 supports generic MODBUS RTU protocol for data acquisition and uses MQTT protocol to communicate with IT application database on cloud. The Device can be easily configured within one minute to send your data on Any MQTT Server / Arya Electronics hosted dashboard.

Features

1. Supply Voltage 90-270V AC

2. Uarts 3 Nos :  RS232 +1

         – Non isolated RS485 + 1

         – GPRS or Wifi

3. Storage memory – SD Card available

4. Cloud-based support system

5. ADC – 16 channel add on module for 4-20mA or 0-5V input

6. DI – 4Nos.

7. DO – 2 Nos.

8. Microcontroller based

9. GSM/GPRS with External Antenna  or wifi module

10. Enclosure – Din rail mount IP20

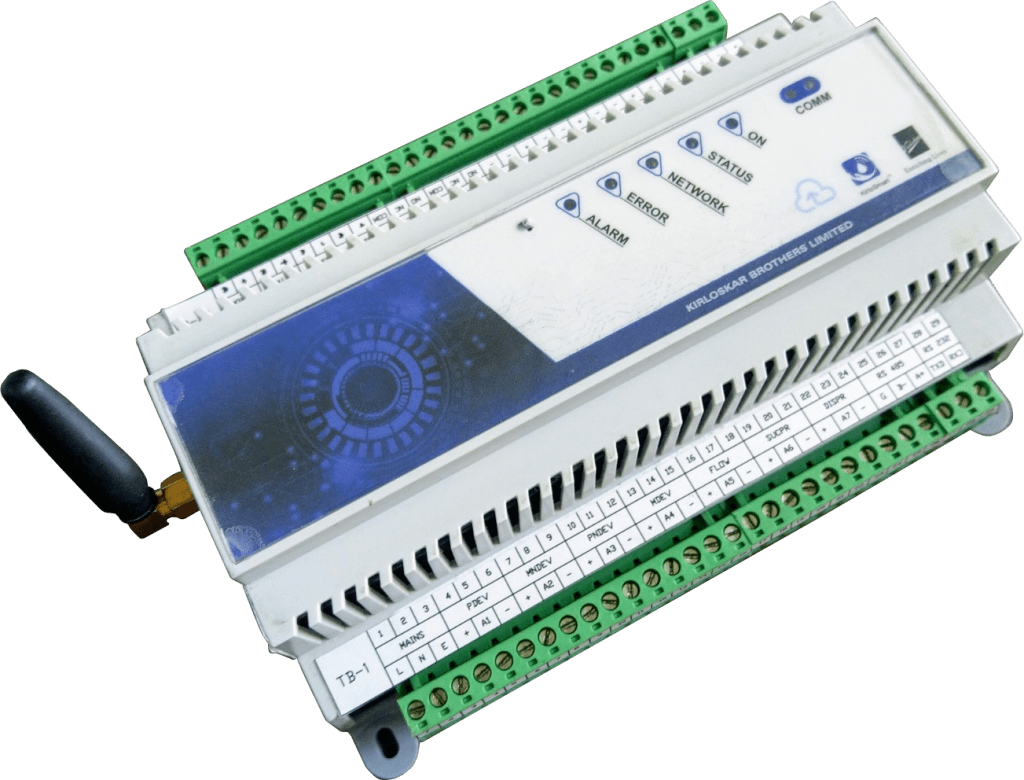

IIOT SMART 12

C. M2M Gateway

  • DIN rail mount
  • Embedded CPU
  • Operating temperature range: -20 – 60°C
  • Durable hardware reduces maintenance costs
  • Daisy-chain connections do not required a HUB
  • Physical dimensions: 188.0(W)×78.0(D)×30.5(H) mm (7.40″×3.07″×1.20″) (does not include protrusions and antenna)
  • Power supply voltage: 12 – 24 VDC
