Datalogger & Cloud Management Overview :
Arya Electronics offer Multi Channel data logger is a equipment used to store data. This contains several data purchase policies such as plug-in boards or serial communication systems which use processor as a real time data recording system. However, most device producers ponder a Portable Data Logger an impartial device that can read numerous categories of electrical indications and store the data in internal memory for later download to a computer.
The benefit of Arya Wireless Datalogger is that they can activate independently of a computer, unlike many other types of data acquisition policies. Portable Datalogger are accessible in several forms and extents. The range embraces modest cost-effective single channel fixed function data loggers to more powerful programmable devices capable of managing hundreds of inputs.
A data logger is an electronic device that records data over time. A data logger can measure temperature, humidity, Carbondioxide, pH Balance, Pressure, Voltage, Current, Pulse. Data loggers are either standalone or wireless.
Advantages of data logger are as follows :-
- Record different data types
- Data storage and download
- Monitoring meat temperature
- Monitoring vaccine storage
- Monitoring Machinery
Arya Electronics offer Cloud management. Cloud Management is used to perform a variety of functions, including Inventory and classification, self-healing and workflow computerization, security and compliance activities, Service request, Monitoring and logging, access control, provisioning and orchestration, Cost management and optimization, Migration, backup, and DR.
Cloud Management covers following areas :-
1) Cloud Management covers On-premises private cloud
2) Cloud Management covers CSP hosted private cloud
3) Cloud Management covers Public cloud service
4) Cloud Management covers IT Service Management
5) Cloud management covers Service Automation

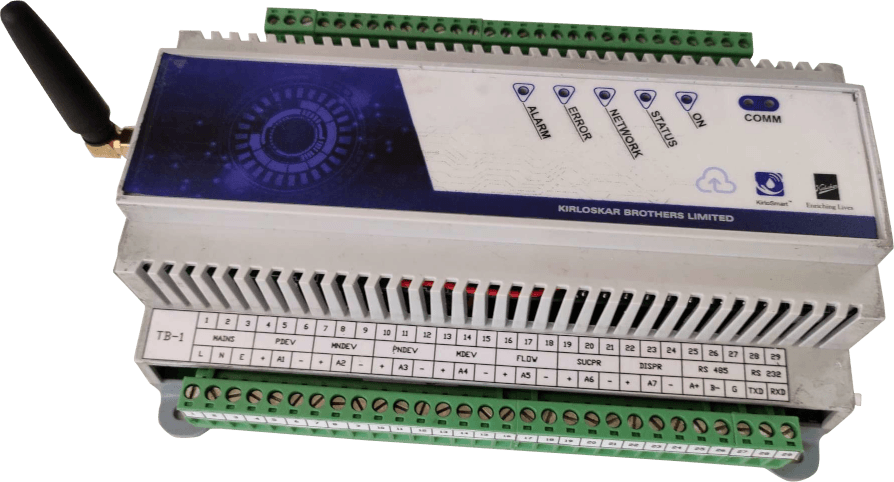

A. GSM Based Data-Logger AE1809
Smart 12 is an industrial unit for remote monitoring & control, alarming over GSM device for locations without LAN access. Connect up to 16 external sensors and 2 dry contact detectors.
Smart 12 monitors the readings of connected sensors. When an asset reaches the alarm threshold, the device directs an e-mail or a text message (SMS), or dials definite numbers. Use the free portal to view measured data in a complex dashboard.
Smart products support FOTA (Firmware Over The Air) for remote firmware updates.
Features:
- 5x 3-Wire RTD Input; 7x 1 wire analog input (loop powered sensors), 4x Digital Input with S0 pulse counters; Data Logger for more than 250000 records; Digital Inputs feature 32-bit pulse counters that hold their assessment even if the control fails.
- 3x E-mail; 3x “SMS+Ring”
- Use the LAN port to configure the device from a PC. Remote configuration also possible via the portal.
- Remote firmware upload (FOTA) capability makes Smart 12 devices ideal for large-scale deployments.
- Connected via GSM/GPRS. List of APN available worldwide.
- A device value out of a set safe range along with a DI state alteration shows an alert by e-mail or “SMS+Ring”, or stimulates a relay (via connected accessory “Relay Output 2-Wire UNI”).
- Data can be sent in e-mail attachments or read from SD card
General Features:
- Inbuilt SMPS 90V to 270V AC 1ph input
- Din rail mount / panel mount enclosure
- Operating Temp – 60 deg c
Applications And Usage:
- GPRS monitoring of machines and their environment
- ATMs – environment monitoring without interfering with the connection
- Art exhibits and depositories
- Storages of food or materials
Features for IoT Datalogger Projects :
- Data transfer over the GSM / GPRS mobile network
- Quick view to current data on web portal
- Mobile application, desktop apps
- Transferring files by e-mail, custom sw or third-party cloud applications

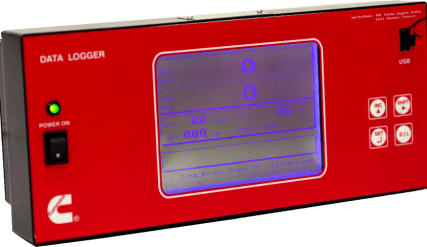

B. Data-Logger (Modbus) AE
- Specially designed for Locomotive Application
- 24V DC Battery driven supply.
- Offline data logging system
- Two RS485 communication ports.
- Periodic DATA logging with time.
- Displaying of the logged data on LCD
- Facility of transferring logged Data on USB flash drive through USB ‘Type A’ Connector.

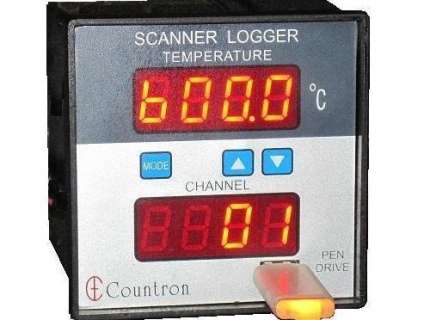

C. Data Logger With Display
- Display: LCD display / Graphic LCD display
- Sensor Inputs: RTD / Thermonuclear / mV / mA / load cell
- Number of channels: 2/4/6/8/12/16.
- Memory: 8GB memory card
- Connectivity: RS232 / RS485 / Ethernet TCP/IP, WIFI etc.
- Protocol: Modbus / Text etc.
- Options: SMS alarm / Individual Channel Alarm / Grouping of channels
- Alarm: As per requirements
- Common relay/ Two relays/ Individual Channel Relays
- Log Interval : Seconds / minutes/ Hours
- Supply: AC Mains operated / DC Operated
- Field: Panel Mount / DIN Size / Wall mount

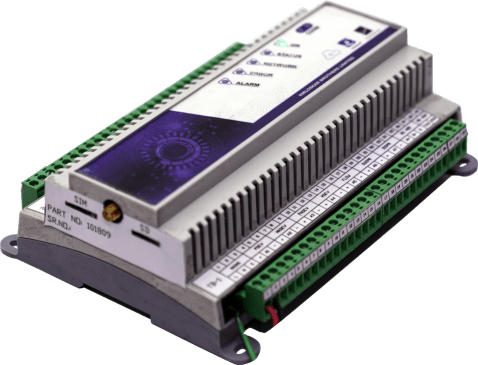

D. Multi Channel Data-Logger
Arya Electronics Multi channel Data Logger is used in different industries for recording data. This multi channel data logger having inputs from 2 / 4/ 6 / 8 / 12/ 16 sources. Our product range is available from 2 to 16 channels.
- 230V AC 1Ph input supply.
- 12 Channel 5x RTD + 7x Analog input
- DI – 4 Nos.
- DO-2 Nos PF contacts
- SD Card Slot
- RS485 communication port.
- Configuration through PC
- Can Transfer data through LAN port
- Optional wi/fi data transfer feature
- Din rail / Panel mount enclosure
