Genset Controller Overview:
Arya electronics Genset controller comprising entire essential utilities for control and protection of a Genset. It is a heart of a generator control panel is its ability to automatically start and stop a generators engine. The Generator controller observes critical engine tasks such as oil pressure as well as coolant temperature, and shut down the generator engine to guard it from damage. It also monitors battery voltage , Engine RPM , Charging alternator etc. It also monitors the alternator functions like Phase voltage & current, Power factor, KW, KVA etc.
A Genset Controller provides many monitoring functions of a genset, monitoring of many electrical parameter like voltage, current, frequency, power etc. Genset Controller also has ability to measure the temperature, oil level or pressure etc.
Arya electronics is closing working with it’s customer for development and manufacturing of Genset Controller from last 21 years.
Team Arya Electronics is well aware of diesel engine parameters and alternator functions.
Types of Genset Controller at Global level :-
- Parallel
- Automatic
- Digital
- Manual
- Others
Applications of Genset Controller at Global Level :-
- Marine Applications
- Emergency Power Supply

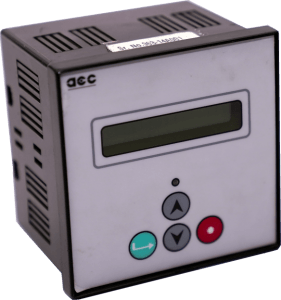

B. Alternator AMF Controller (AMS-963)
Features:
- Microprocessor based design
- Manual Engine start and stop
- 16x2LCD Display with key pad
- Solid state fuel stop & crank output signals
- Safety Protection against LLOP, HCT, LFL, OS, UV, OV, UF, OF
- RS485 communication port
Specifications:
Power supply:
- 12V DC (Battery supply)
Environmental Specifications:
- Operating Temperature: 0 – 60ºC
Over all dimensions: (for controller)
- 96mm x 96mm x 110mm

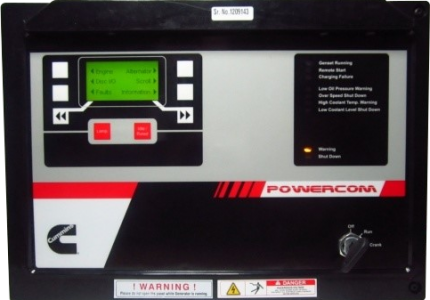

C. POWERCOM
Microprocessor based genset (From 320kVA to 625kVA ) controller for metering, monitoring, protecting and electronic governing of the engine.
The addition of all tasks into a particular control system delivers greater consistency and performance compared to conventional generator set control systems.

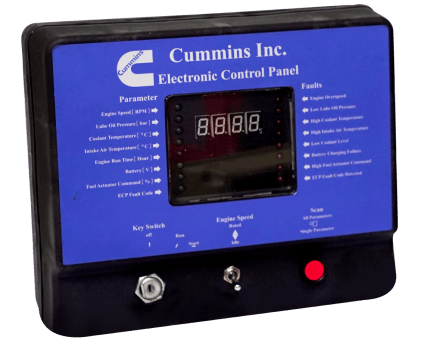

D. Engine Control Panel with Governor (ECPG)
Microprocessor based Diesel Engine Controller for metering, monitoring, protecting and electronic governing of the engine.
