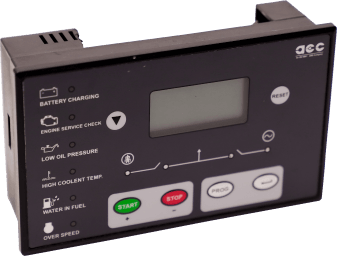

Genset Monitoring Unit (GMU)
Industry
Diesel Genset
Technology
Embedded Electronics
Services Offered
Product Design & Development, Prototype, Manufacturing
Summary
Features:
- Microprocessor based design
- Manual Engine start and stop
- 128×64 graphics LCD Display with key pad
- Solid state fuel stop & crank production indications
- Integral Starter Protection
- Safety Protection against LLOP, HCT, LFL, OS, WIF, UV, OV, UF, OF, OL
Specifications:
Power supply : 12V DC (Battery supply)
Environmental Specifications : Operating Temperature: 0 – 60ºC
Over all dimensions: (for controller) 102mm x 164mm x 50mm
Indications On LCD Display:
- Battery voltage (V)
- Fuel Level (%)
- LOP (Bar)
- WT (ºC)
- Run Hours (Hr:Min)
- Engine Speed (RPM)
- Alternator voltage (1Ph/3Ph)
- Load current (1Ph/3Ph)
- Alternator power in kw
- Alternator KwH
- Power factor (pf) (1Ph/3Ph)
- Alternator supply frequency
Key Switches:
- Start / Increment
- Stop / Decrements
- Program
- Enter
- Scroll Stop
- Acknowledge
Sensor/Switches Required:
- Fuel Level Senor
- LOP Sensor
- WT Sensor
- AC 1Ph, 2Wire Input
- ECU Signals for ESC, LLOP, HCT, WIF and OS
- Emergency Stop
- Spare configurable
- Battery Charger Input
Output:
- Start (Programmed cranking cycle)
- Stop (Programmable for Energize to start or energize to stop)
