Arya Electronics is an embedded systems provider offering complete product lifecycle solutions, from concept to production. We specialize in:
- Control Systems: Designing and manufacturing controllers for applications like AMF (Automatic Mains Failure), compressors, and diesel generators.
- Embedded Solutions: Providing expertise in hardware and firmware design, advanced verification, and in-house manufacturing (both low-volume/high-mix and high-volume/low-mix).

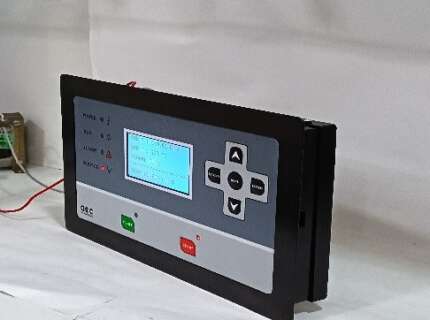

1)AE-2020 – Smart Compressor Controller :
- Smart Monitoring for Modern Operations
- Reliable, Resilient, and Ready.
Features
| 128*64 Graphical LCD | LED Indication for each status |
| Auto start operation at power NO/OFF | 6 Analog inputs |
| Remote ON/OFF operation | 6 Programmable relay output |
| History records available | 3 Programmable Digital inputs |
| Service hours counters | 2 Pressure sensor inputs |
| Star/Delta startup | 2 Temperature sensor inputs |
| Load Solenoid control | Adjustable sensor characteristics |
| Voltage & Current measurement and Protection | MODBUS RTU communication |
| Prevention for air compressor reversion | Wide operating Temperature range |
| 20V AC Supply | Wide operating Pressure range |
Benefits
- Easy Installation
- Wide Product Range
- Withstand Diverse
- Environments Quality & Reliability
- Early Fault Detection
- Future Ready
Specifications:
Cut out dimension : 139 mm (L) X 239 mm (W)
Over all dimension : 154mm (L) X 257 mm (W) X 36.5mm (H)
Sr. | Motor | Sr N Current in amp | Model Name | Motor | Fan |
1 | 60-100HP | 150A | AE2020- M100 | 150A/30mA | 10A/10mA |
2 | 30-60Hp | 93.65A | AE2020- M60 | 100A/30mA | 10A/10mA |
3 | 15-30Hp | 56.16A | AE2020- M30 | 60A/30mA | 10A/10mA |
4 | 0-15Hp | 28.08A | AE2020- M15 | 30A/30mA | 10A/10mA |
Want full product specifications?

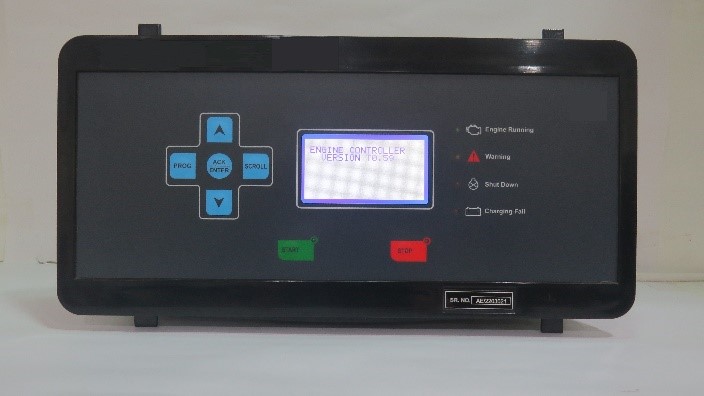

2)AE-2320 – Engine + Compressor Controller :
The Ultimate Monitoring & Control Solution (Microprocessor-Based: Precision design with fault history storage (up to 100 events).
Specifications:
Power supply : 24V Battery Driven
Operating Temperature : 0 – 70ºC
Cutout dimensions (for controller) : 247mm x 137mm x 75mm
Overall Dimensions : 304mm x 137mm X 75mm
Features
- Microprocessor based design
- Manual Engine start and stop
- 128×64 graphics LCD Display with key pad
- Solid state fuel stop & crank output signals max for 1A
- Solid state digital outputs for Grid Heater and Compressor Load Valve for max 150mA
- Integral Starter Protection
- Safety Protection against various faults
- Communication Port – RS485
- IP 66 plastic enclosure
- Fault history (upto 100 events)
Benefits:
- Enhanced Engine Control and Protection
- Improved System Monitoring and Diagnostics
- Remote Monitoring and Communication Capabilities
- Durability and Reliability User-friendly Operation and Maintenance
Looking for technical details?

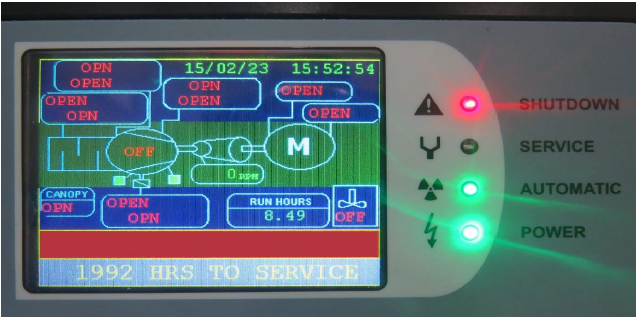

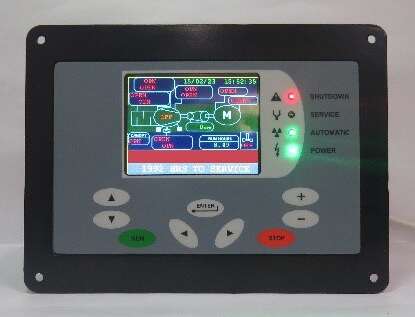

3)AE-1920 – Blower Controller :
Compact & Reliable Control 3.5” TFT Display: Clear HMI interface with keypad controls.
Specifications of Air Compressor Controller :
Power Supply : 24V DC (SMPS)
Environmental Specifications : Operating Temperature : 0 – 50ºC / Protection Class – NA
Over All Dimensions : 180mm x 130mm x 60mm
Features
- Microprocessor based design
- Manual Blower start and stop
- 5” TFT Display Non touch
- HMI keypad & indications
- Analog inputs – 12 Nos
- Proximity Sw Inputs – 2 Nos.
- Digital Inputs – 6 Nos
- Digital Outputs – 8 Nos
- RTC
- RS485 Port
- Datalogging (SD Card)
Benefits
- Enhanced Efficiency and Reliability
- Improved Safety and Reduced Downtime
- Enhanced User-Friendliness
- Flexibility and Adaptability
- Improved Maintenance and Troubleshooting
